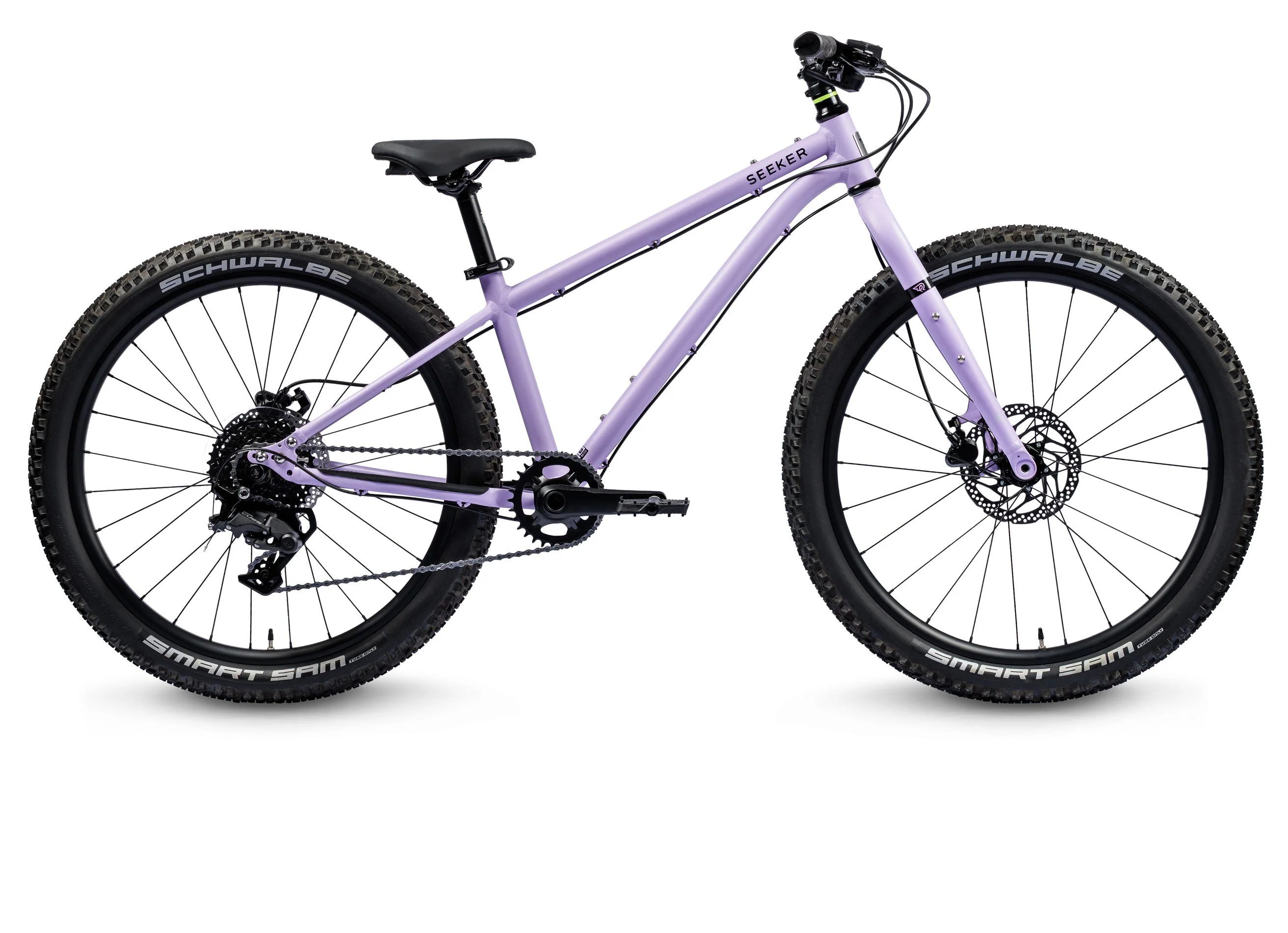

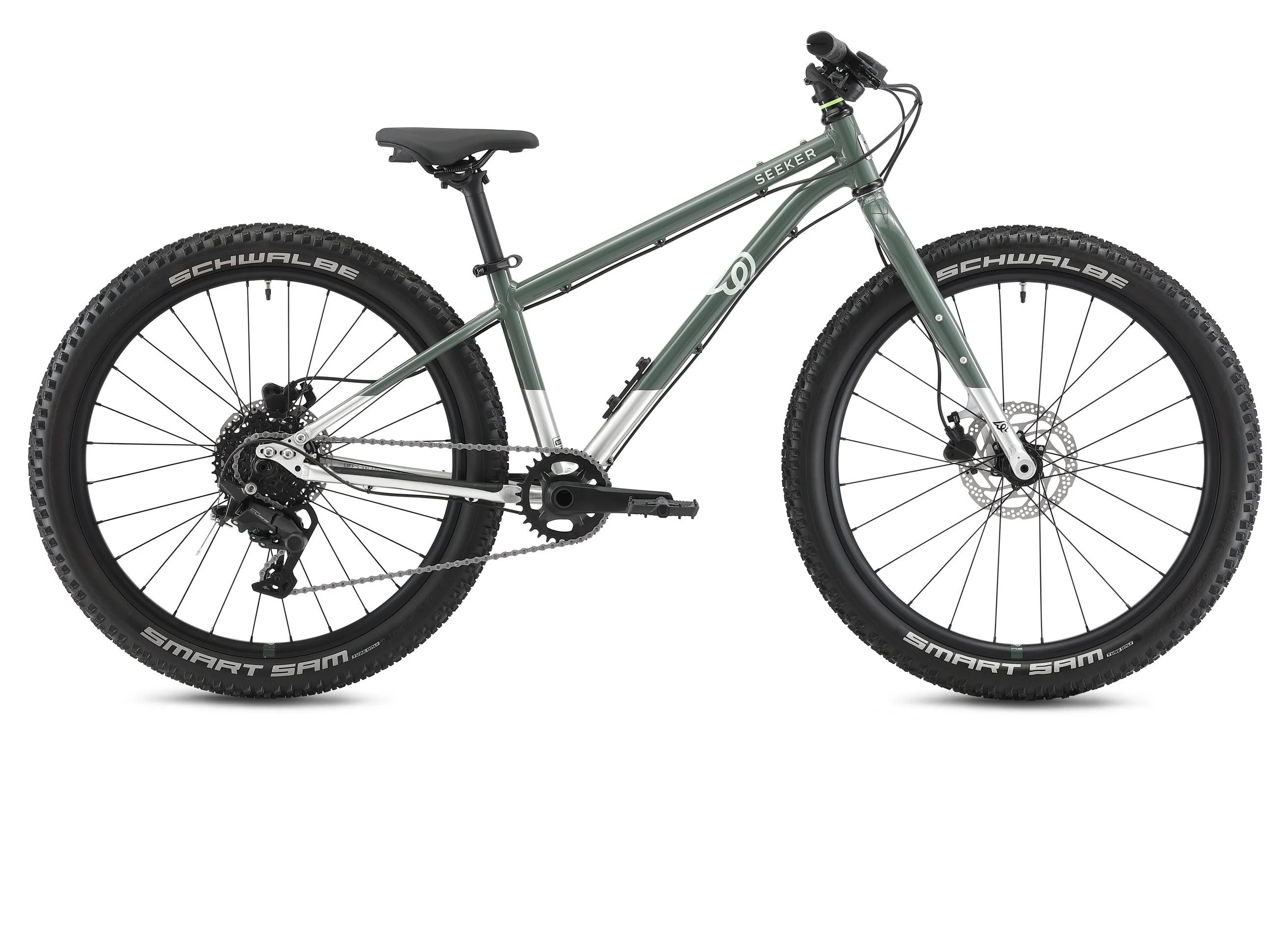

Seeker 24

Adventuring.

Built to handle off-road adventures with ease and a confident ride on varied terrain. The Seeker 24 comes equipped with a Shimano CUES 1x9 drivetrain with a light-action thumb shifter ensures smooth, responsive shifting, while the 130mm crankarms offer efficient pedalling. Setup with powerful Tektro hydraulic disc brakes, sealed bearing wheels with bolt-thru axles and Schwalbe Smart Sam 2.35" tires, this bike is ready for anything from light trails to full on off-road adventures.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with the front and rear wheel detached. Attach both wheels using the skewers supplied and install the gearing mechanism. The handlebar will be zip tied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.



[Left column]

INSIDE LEG

63CM

FRAME

HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS

FORK

HAND BRUSHED AL6061, FORGED DROPOUTS

STEERER TUBE

AL6061

CRANKS

SAMOX 127MM DIRECT MOUNT, NQF

PEDALS

ER WORKS PLATFORM, CNC'D AL6061, STUDDED, CARTRIDGE BEARING

BOTTOM BRACKET

SAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE

RIMS

24 X 28H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE

REAR HUB

ER 4 BEARING CASSETTE FREEHUB, CNC'D AL6061

FRONT HUB

CHAIN

KMC eGLIDE

CHAINRING

SAMOX BLACK DIRECT MOUNT STEEL 30T

REAR CASSETTE

SHIMANO 9-SPEED 11-36T

SHIFTER

SHIMANO CUES 9-SPEED TRIGGER



*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*

CLICK HERE FOR THE USER MANUAL

[Right column]

WEIGHT

10.3KGS W/O PEDALS

DERAILLEUR

SHIMANO CUES 9-SPEED MECH

BRAKES

TEKTRO HYDRAULIC JR, 160MM ROTORS

LEVERS

TEKTRO SHORT REACH

FRONT TYRE

SCHWALBE SMART SAM 24x2.35", 67TPI WB

REAR TYRE

SCHWALBE SMART SAM 24x2.35", 67TPI WB

HEADSET

1 1/8” CARTRIDGE BEARING, CONVENTIONAL

STEM

FORGED AL6061, 35MM REACH

BARS

640MM DOUBLE BUTTED AL6061, 30MM RISE

GRIPS

ER LOCK ON KRATON 115MM

SEAT POST

AL6061, 27.2MM x 350MM

SADDLE

ER WING 2, BLACK

SEAT CLAMP

ER QR, 31.8MM



[Table]

STANDOVER HEIGHT	63CM
FRAME	HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS
FORK	HAND BRUSHED AL6061, FORGED DROP OUTS
STEERER	TUBE AL6061
CRANKS	SAMOX 127MM DIRECT MOUNT, NQF
PEDALS	ER WORKS PLATFORM, CNC'D AL6061, STUDDED, CARTRIDGE BEARING
BOTTOM BRACKET	SAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE
RIMS	24 X 28H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE
REAR HUB	ER 4 BEARING CASSETTE FREEHUB, CNC'D AL6061
FRONT HUB	CNC’D 6 BOLT DISC, AL6061, QR SKEWER
AXLES	AL6061
CHAIN	KMC eGLIDE
CHAINRING	DIRECT MOUNT, NARROW WIDE 30T, STEEL
WEIGHT	10.3KGS W/O PEDALS
REAR CASSETTE	SHIMANO 9-SPEED 11-36T
BRAKES	TEKTRO HYDRAULIC JR, 160MM ROTORS
LEVERS	TEKTRO SHORT REACH
FRONT TYRE	SCHWALBE SMART SAM 24x2.35", 67TPI WB
REAR TYRE	SCHWALBE SMART SAM 24x2.35", 67TPI WB
HEADSET	1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM	FORGED AL6061, 35MM REACH
BARS	640MM DOUBLE BUTTED AL6061, 30MM RISE
GRIPS	ER LOCK ON KRATON 115MM
SEAT POST	AL6061, 27.2MM x 350MM
SADDLE	ER WING 2, BLACK
SEAT CLAMP	ER QR, 31.8MM
DERAILLEUR	SHIMANO CUES 9-SPEED MECH

SPEC NOTICE

Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice

[Table spec]

A	Wheelbase	992.2mm
B	Head Angle	67°
C	Seat Tube Length	320mm
D	Chainstay Length	392mm
E	Seat Tube Angle	73°
F	Standover Height	600mm
G	Top Tube Length	513.5mm
H	Head Tube Length	92mm
I	Stack	497.3mm
J	Reach	361.5mm
K	Fork Length	410mm
