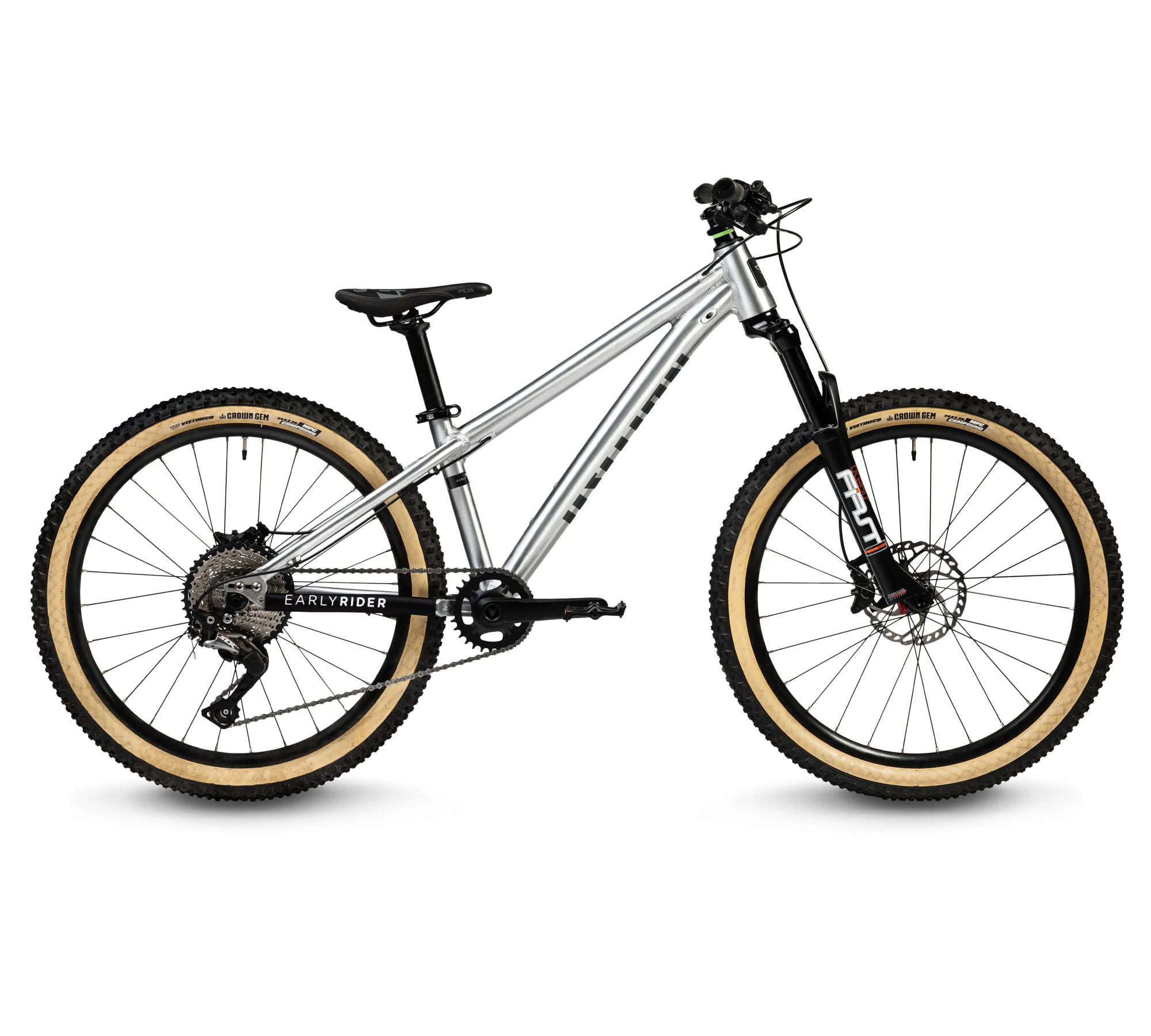

Hellion 24 (MY24/25)

Go all out. All of the time.

For an increasing number of little shredders, high performance bikes are critical to their development. The technicality they are looking to achieve is already far beyond the the realms of normal kids bikes. To give them the performance that matched their capabilities, something special was needed. Our Hellion range is that special something and our 24 is our flagship, race ready hard tail.

Progressive geometry combines with meticulous manufacturing. The Hellion 24 frame is made with triple butted tubing and is mitred by CNC machines. The clean, simple lines belie the detail: internal cabling, dropper ready, sliding drop outs, a tapered headset and a CNC'd yoke that will take an impressive 2.6" tyre.

A market leading 1 x11 Shimano clutch equipped drivetrain with a huge 381% gear range. Rapid fire shifters for immediate transitioning, direct mounts cranks, narrow wide chainrings and external bottom bracket for super smooth drive transfer to an immensely capable wheel set. Tubeless ready, double walled rims, CNCd' straight pull hubs on thru axles and running high thread count folding tyres.

Supported by light actuating Shimano hydraulic brakes that provide immediate, powerful braking no matter the conditions and a proven 100mm travel RST fork specifically chosen to complement the geometry of the bike. Your kid will get from the top to the bottom of the bike park before you can take it all in, let alone catch them up.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with the front and rear wheel detached. Attach both wheels using the skewers supplied and install the gearing mechanism. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.

[Left column]

INSIDE LEG

65CM

FRAME

TRIPLE BUTTED AL6061, INTERNAL CABLING, DROPPER READY

FORK

RST FIRST RST, 100MM TRAVEL, 15MM THRU AXLE, PM DISC MOUNT

STEERER TUBE

AL6061

CRANKS

SAMOX 150MM DIRECT MOUNT, NQF

PEDALS

ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING

BOTTOM BRACKET

SAMOX 24MM EXTERNAL CUP, CARTRIDGE BEARING

RIMS

24 X 28H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE

REAR HUB

CNC'D STRAIGHT PULL AL6061, 12x142 THRU AXLE

FRONT HUB

CNC’D STRAIGHT PULL AL6061, 15MM THRU AXLE

CHAIN

KMC X11EL

CHAINRING

SAMOX DIRECT MOUNT STEEL 30T

REAR CASSETTE

SHIMANO CS-M5100-11 DEORE 11-SPEED 11-51T

SHIFTER

SHIMANO SL-M5100-IR DEORE RIGHT 11-SPEEDRAPIDFIRE



*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*

CLICK HERE TO VIEW THE USER MANUAL

[Right column]

WEIGHT

10.9KGS W/O PEDALS

AXLES

THRU AXLES AL7075, 15MM FRONT, 15MM REAR

DERAILLEUR

SHIMANO RD-M5100 DEORE SGS 11-SPEED

BRAKES

SHIMANO DEORE BL-MT6000, 160MM ROTORS

LEVERS

SHIMANO DEORE BL-M6000

FRONT TYRE

VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING

REAR TYRE

VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING

HEADSET

SEMI INTEGRATED, TAPERED  1 1/8” - 1 1/5" CARTRIDGE BEARING

STEM

RITCHEY OS FORGED AL6061, 35MM REACH

BARS

640MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE

GRIPS

ER LOCK ON KRATON 115MM

SEAT POST

RITCHEY, 30.9MM x 350MM, AL2014

SADDLE

SDG FLY JR, BLACK

SEAT CLAMP

RITCHEY QR, 34.9MM



[Table]

STANDOVER HEIGHT	65CM
FRAME	TRIPLE BUTTED AL6061, INTERNAL CABLING, DROPPER READY
FORK	RST FIRST RST, 100MM TRAVEL, 15MM THRU AXLE, PM DISC MOUNT
STEERER	TUBE AL6061
CRANKS	SAMOX 150MM DIRECT MOUNT, NQF
PEDALS	ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING
BOTTOM BRACKET	SAMOX 24MM EXTERNAL CUP, CARTRIDGE BEARING
RIMS	24 X 28H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE
REAR HUB	CNC'D STRAIGHT PULL AL6061, 12x142 THRU AXLE
FRONT HUB	CNC’D STRAIGHT PULL AL6061, 15MM THRU AXLE
AXLES	THRU AXLES AL7075, 15MM FRONT, 15MM REAR
CHAIN	KMC X11EL
CHAINRING	SAMOX DIRECT MOUNT STEEL 30T
WEIGHT	10.9KGS W/O PEDALS
SHIFTER	SHIMANO SL-M5100-IR DEORE RIGHT 11-SPEEDRAPIDFIRE
REAR CASSETTE	SHIMANO CS-M5100-11 DEORE 11-SPEED 11-51T
BRAKES	SHIMANO DEORE BL-MT6000, 160MM ROTORS
LEVERS	SHIMANO DEORE BL-M6000
FRONT TYRE	VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING
REAR TYRE	VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING
HEADSET	SEMI INTEGRATED, TAPERED  1 1/8” - 1 1/5" CARTRIDGE BEARING
STEM	RITCHEY OS FORGED AL6061, 35MM REACH
BARS	640MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE
GRIPS	ER LOCK ON KRATON 115MM
SEAT POST	RITCHEY, 30.9MM x 350MM, AL2014
SADDLE	SDG FLY JR, BLACK
SEAT CLAMP	RITCHEY QR, 34.9MM
DERAILLEUR	SHIMANO RD-M5100 DEORE SGS 11-SPEED

SPEC NOTICE

Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice

[Table spec]

A	Wheelbase	1000mm
B	Head Angle	67°
C	Seat Tube Length	307.5mm
D	Chainstay Length	390mm
E	Seat Tube Angle	73°
F	Standover Height	640mm
G	Top Tube Length	510mm
H	Head Tube Length	100mm
I	Stack	547.9mm
J	Reach	344mm
K	Fork Length	480mm
