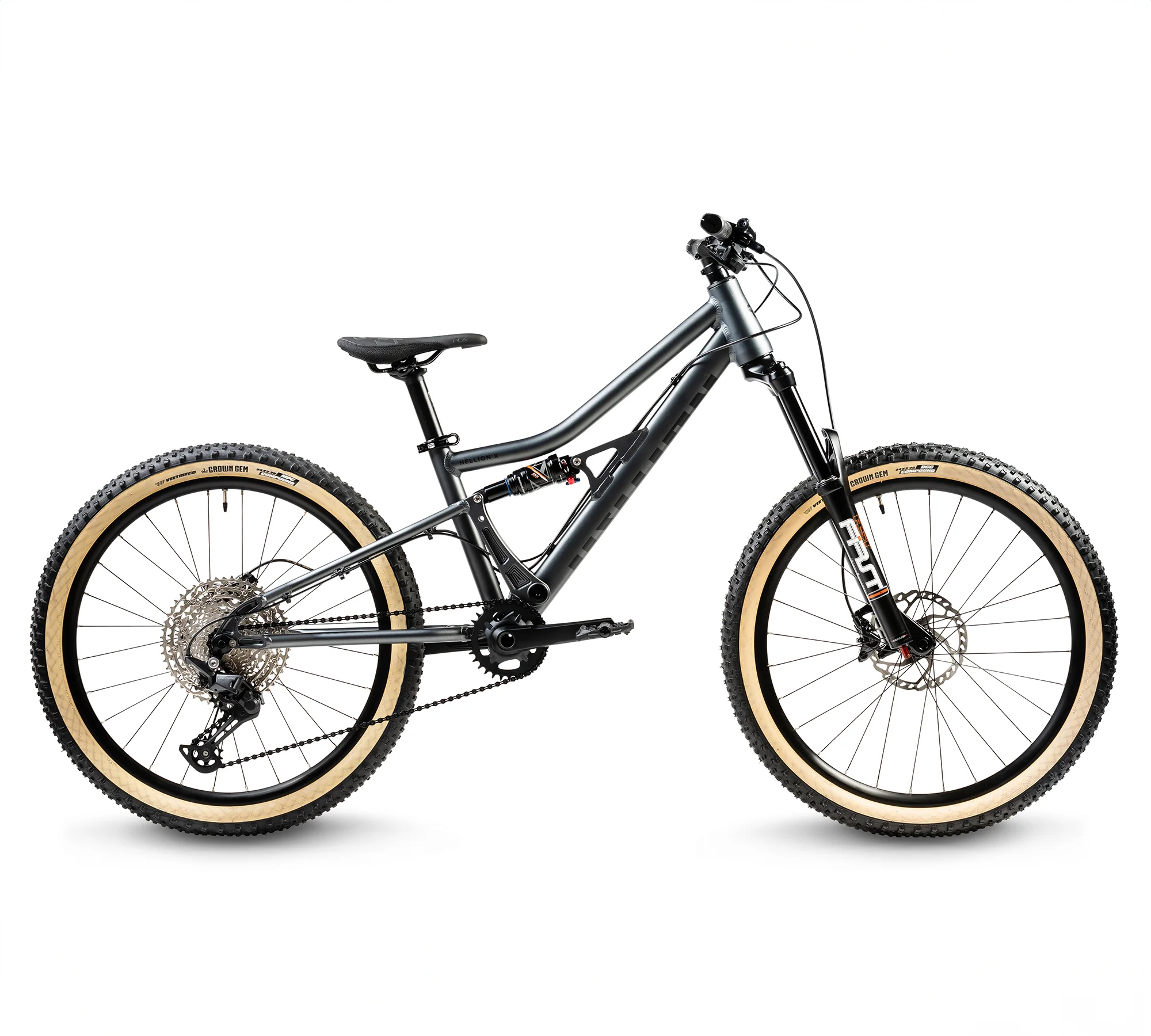

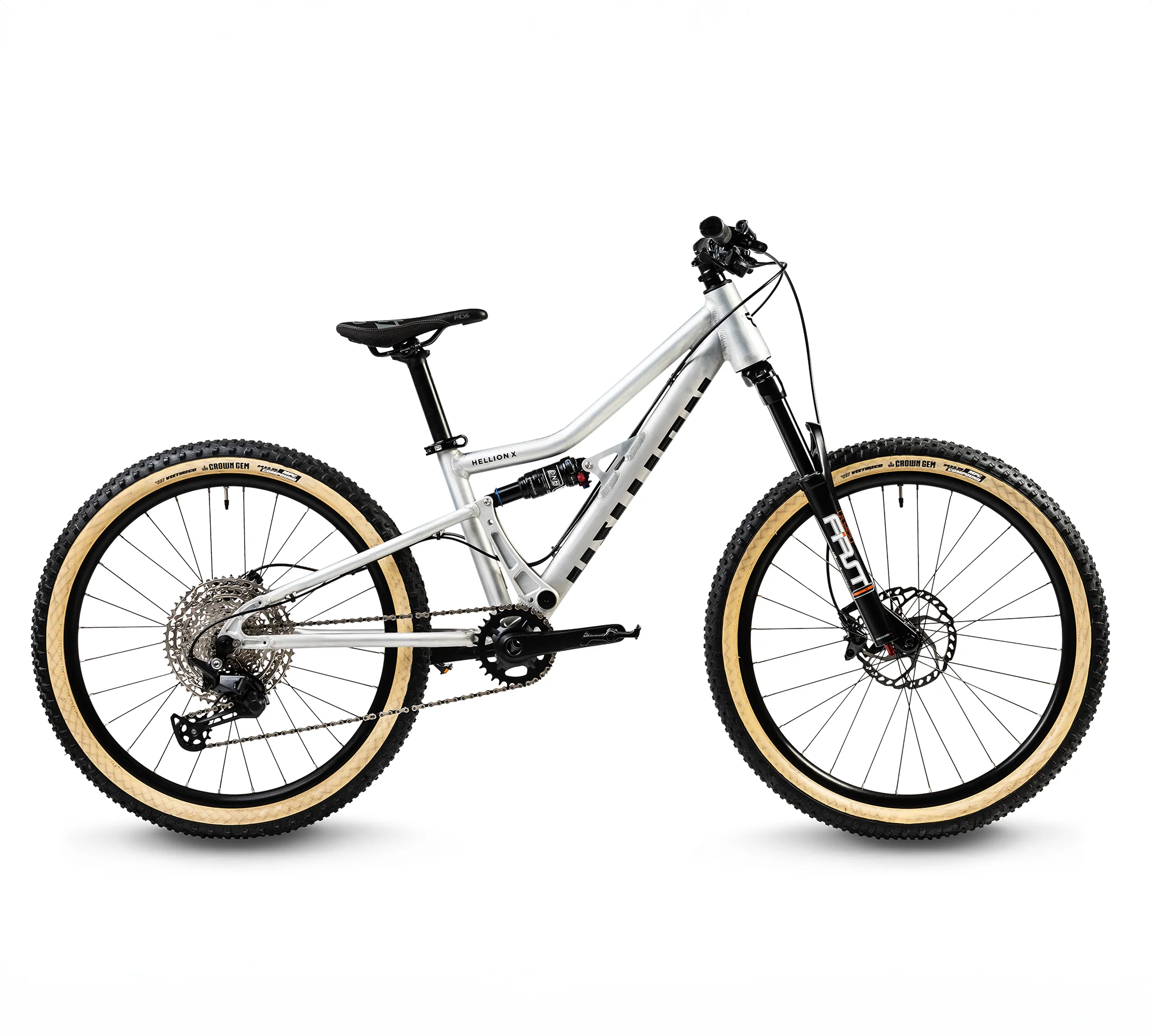

Hellion X24
Go big.
Another collaboration with the mighty Lil Shredder, a race ready enduro machine born of necessity on the black runs of Whistler. A bike fast enough, plush enough, and responsive enough to run back to back all summer long. This phenomenal machine is the peak of kids' performance bikes and the history of riders that have played a part of the bikes development is beyond comparison.
The HX24 uses a combination of 6061 and 6066 tubing to give the best possible stiffness to weight ratio. Frame components are fully CNC’d, single pivot suspension kinematics giving predictable and durable performance. Progressive geometry combines with the world's best aluminum frame maker, the HX24 is clean, simple and proven. It’s all hidden in the detail; stealth dropper post ready, ISCG tabs & a 4 bearing pivot.
Out of the box the bike comes setup in the 4 “ travel position, a fantastic and appropriate trail rig. But drop the rear shock mount into the 5” position, and see the headtube slacken by 1.5 degree, bb drop and turn the bike into a descending hooner!
A market leading 1 x11 Shimano clutch equipped drivetrain with a huge gear range. Rapid fire shifters for immediate transitioning, direct mounts cranks, narrow wide chainrings and external bottom bracket for super smooth drive transfer to an immensely capable wheel set. Tubeless ready, double walled rims, CNCd' straight pull hubs on thru axles and running high thread count folding tyres.
Supported by light actuating Shimano hydraulic brakes that provide immediate, powerful braking no matter the conditions and a proven 120mm travel RST fork specifically chosen to complement the geometry of the bike. The Hellion X24 is the bike that showed that kids can do everything that adults can do, if they have the right tools.
ASSEMBLY INSTRUCTIONS:
Your bike will arrive carefully packaged and boxed with the front and rear wheel detached. Attach both wheels using the skewers supplied and install the gearing mechanism. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.
[Left column]
INSIDE LEG
65CM
FRAME
BUTTED ALLOY FRAME, 100/125MM TRAVEL, DROPPER READY
REAR SHOCK
DNM AO-38RC, 165X38MM REBOUND ADJUST, PEDAL PLATFORM
FORK
RST FIRST AIR 15, 120MM TRAVEL, 15MM THRU AXLE, PM DISC MOUNT
CRANKS
SAMOX 150MM DIRECT MOUNT
PEDALS
SDG SLATER 90 PEDALS, BLACK
BOTTOM BRACKET
SAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE BEARING
RIMS
24 X 28H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE
REAR HUB
CNC'D STRAIGHT PULL AL6061, 12x142 (1.0) THRU AXLE
FRONT HUB
CNC’D STRAIGHT PULL AL6061, 15MM THRU AXLE
CHAIN
KMC X10
CHAINRING
SAMOX DIRECT MOUNT STEEL 30T
REAR CASSETTE
SHIMANO CS-M5100-11, DEORE, 11-SPEED 11-51T
SHIFTER
SHIMANO SL-M5100-IR, DEORE, RIGHT,11-SPEEDRAPIDFIRE
*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*
CLICK HERE TO VIEW THE USER MANUAL
[Right column]
WEIGHT
11.5KGS W/O PEDALS
AXLES
THRU AXLES AL7075, 15MM FRONT, 142 x 12MM REAR (1.0P)
DERAILLEUR
SHIMANO RD-M5100, DEORE,SGS 11-SPEED
BRAKES
SHIMANO DEORE BL-MT6000, 160MM ROTORS
LEVERS
SHIMANO DEORE BL-M6000
FRONT TYRE
VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING
REAR TYRE
VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING
HEADSET
SEMI INTEGRATED, TAPERED 1 1/8” - 1 1/5" CARTRIDGE BEARING
STEM
RITCHEY OS FORGED AL6061, 35MM REACH
BARS
640MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE
GRIPS
ER LOCK ON KRATON 115MM
SEAT POST
RITCHEY, 30.9MM x 350MM, AL6061
SADDLE
SDG FLY JR, BLACK
SEAT CLAMP
RITCHEY QR, 34.9MM
[Table]
| STANDOVER HEIGHT | 65CM |
| FRAME | BUTTED ALLOY FRAME, 100/125MM TRAVEL, DROPPER READY |
| REAR SHOCK | DNM AO-38RC, 165X38MM REBOUND ADJUST, PEDAL PLATFORM |
| FORK | RST FIRST AIR 15, 120MM TRAVEL, 15MM THRU AXLE, PM DISC MOUNT |
| STEERER | TUBE AL6061 |
| CRANKS | SAMOX 150MM DIRECT MOUNT |
| AXLES | THRU AXLES AL7075, 15MM FRONT, 142 x 12MM REAR (1.0P) |
| PEDALS | SDG SLATER 90 PEDALS, BLACK |
| BOTTOM BRACKET | SAMOX 24MM EXTERNAL CUP, SEALED CARTRIDGE BEARING |
| RIMS | 24 X 28H, DOUBLE WALLED AL6061, TUBELESS COMPATIBLE |
| REAR HUB | CNC'D STRAIGHT PULL AL6061, 12x142 (1.0) THRU AXLE |
| FRONT HUB | CNC’D STRAIGHT PULL AL6061, 15MM THRU AXLE |
| CHAIN | KMC X10 |
| CHAINRING |
SAMOX DIRECT MOUNT STEEL 30T |
| WEIGHT | 11.5KGS W/O PEDALS |
| SHIFTER | SHIMANO SL-M5100-IR, DEORE, RIGHT,11-SPEEDRAPIDFIRE |
| REAR CASSETTE | SHIMANO CS-M5100-11, DEORE, 11-SPEED 11-51T |
| BRAKES | SHIMANO DEORE BL-MT6000, 160MM ROTORS |
| LEVERS | SHIMANO DEORE BL-M6000 |
| FRONT TYRE | VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING |
| REAR TYRE | VEE CROWN GEM SKINWALL 24*2.25" 72 TPI, FOLDING |
| HEADSET | SEMI INTEGRATED, TAPERED 1 1/8” - 1 1/5" CARTRIDGE BEARING |
| STEM | RITCHEY OS FORGED AL6061, 35MM REACH |
| BARS | 640MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE |
| GRIPS | ER LOCK ON KRATON 120MM |
| SEAT POST | RITCHEY, 30.9MM x 350MM, AL6061 |
| SADDLE | SDG FLY JR, BLACK |
| SEAT CLAMP | RITCHEY QR, 34.9MM |
| DERAILLEUR | SHIMANO RD-M5100, DEORE,SGS 11-SPEED |
| SPEC NOTICE | Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice |
[Table spec]
| A | Wheelbase | 1065mm |
| B | Head Angle | 66° |
| C | Seat Tube Length | 330mm |
| D | Chainstay Length | 425mm |
| E | Seat Tube Angle | 70° |
| F | Standover Height | 640mm |
| G | Top Tube Length | 537mm |
| H | Head Tube Length |
127mm |
| I | Stack |
552mm |
| J | Reach |
335mm |
| K | Fork Length | 500mm |
Original: $2,384.65
-70%$2,384.65
$715.39
