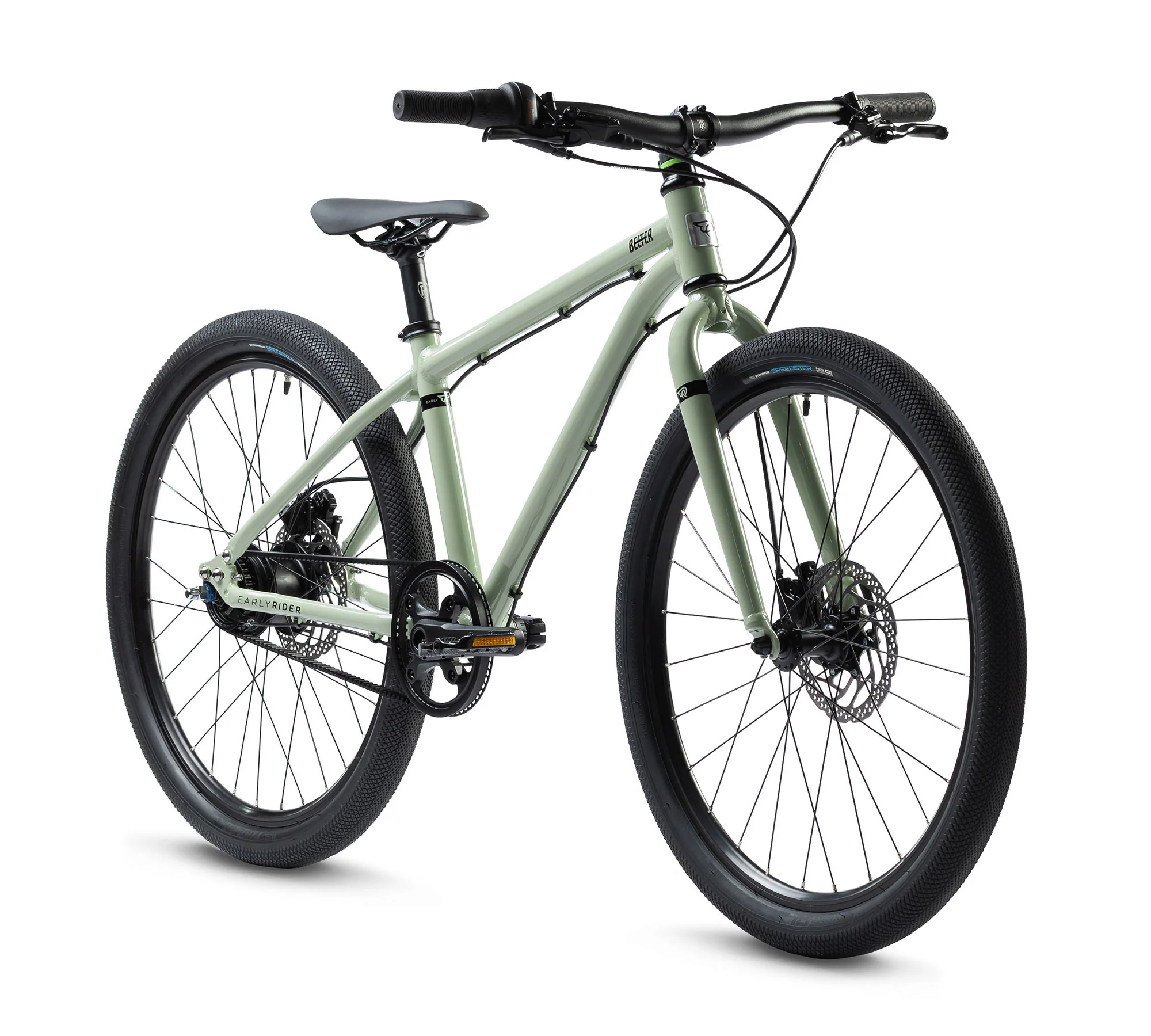

Belter 24 (MY24/25)
The (last) word on the street.
The Belter 24 is stunning, whichever way you look at it, and whenever. A maintenance free Shimano hub and beautifully clean belt drivetrain because winter is hard enough without having to regularly clean out 'mud glue' from derailleurs and clean clothes smeared by greasy chains or speared by grimy rings. An incredible 310% gear range provided by 8 evenly spaced gears because our 10-going-on-20 year olds like to go places, fast, no matter what's in the way. Instant changing to any gear you want, whether pedalling or not for those stop start urban rides, try that with a derailleur and see how far you get.
Hydraulic disc brakes on 160mm rotors because towns have hills too, and stopping power around traffic is even more important than on the trails. So is control, which is why our Belter 24 has the same custom Ritchey finishing kit and direct mount crankset as our race ready full suspension bikes. Speedster 2" tyres for comfort and confidence when hitting curbs and unexpected pot holes, oh, and 32 spoked rims to make sure the wheels don't buckle under the stress.
Robust, lightweight, nimble, fast, clean, maintenance free, durable, beautiful and safe. The Belter 24 meets the wishlist of the most active kids on the streets as well as the most concerned parents at home.
ASSEMBLY INSTRUCTIONS:
Your bike will arrive carefully packaged and boxed with the front and rear wheel detached. Attach both wheels using the bolts supplied and install the gearing mechanism. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.
[Left column]
INSIDE LEG
64CM
FRAME
HAND BRUSHED AL6061, DISC FRAME, FORGED SLIDING DROP OUTS
FORK
HAND BRUSHED AL6061, DISC, FORGED DROP OUTS
STEERER TUBE
AL6061
CRANKS
SAMOX 150MM FORGED CRANKSET
PEDALS
ER PLATFORM PEDAL, ALLOY, CARTRDIGE BEARING
BOTTOM BRACKET
SAMOX EXTERNAL CUP 24MM
RIMS
FRONT 28H, REAR 32H DOUBLE WALLED AL6061
REAR HUB
SHIMANO NEXUS C6001-8D (8SPD)
FRONT HUB
SHIMANO RM-35 28H, CENTER LOCK DISC, QR SKEWER
BELT
CDRIVE 1160 x 12MM PU H8M
FRONT SPROCKET
CDRIVE 60T, AL7075
REAR SPROCKET
CDRIVE 32T, AL7075
*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*
CLICK HERE TO VIEW THE USER MANUAL
[Right column]
WEIGHT
10.7KGS W/O PEDALS
SHIFTER
SHIMANO NEXUS TWIST, 8SPD
BRAKES
PROMAX DSK926 HYDRAULIC JR, 160MM ROTORS
LEVERS
PROMAX DSK926 JR
FRONT TYRE
VEE SPEEDSTER 24*2.0, 27TPI WB
REAR TYRE
VEE SPEEDSTER 24*2.0, 27TPI WB
HEADSET
1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM
RITCHEY OS FORGED AL6061, 35MM REACH
BARS
640MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE
GRIPS
ER WING 120L, 70R
SEAT POST
RITCHEY, 27.2MM, AL6061, 300MM
SADDLE
ER YOUTH SADDLE, BLACK
SEAT CLAMP
ER BOLT, 31.8MM
[Table]
| STANDOVER HEIGHT | 64CM |
| FRAME | HAND BRUSHED AL6061, DISC FRAME, FORGED SLIDING DROP OUTS |
| FORK | HAND BRUSHED AL6061, DISC, FORGED DROP OUTS |
| STEERER | AL6061 |
| CRANKS | SAMOX 150MM FORGED CRANKSET |
| PEDALS | ER PLATFORM PEDAL, ALLOY, CARTRDIGE BEARING |
| BOTTOM BRACKET | SAMOX EXTERNAL CUP 24MM |
| RIMS | FRONT 28H, REAR 32H DOUBLE WALLED AL6061 |
| REAR HUB | SHIMANO NEXUS C6001-8D (8SPD) |
| FRONT HUB | SHIMANO RM-35 28H, CENTER LOCK DISC, QR SKEWER |
| AXLES | AL6061 |
| BELT | CDRIVE 1160 x 12MM PU H8M |
| FRONT SPROCKET | CDRIVE 60T, AL7075 |
| WEIGHT | 10.7KGS W/O PEDALS |
| REAR SPROCKET | CDRIVE 32T, AL7075 |
| BRAKES | PROMAX DSK926 HYDRAULIC JR, 160MM ROTORS |
| LEVERS | PROMAX DSK926 JR |
| FRONT TYRE | VEE SPEEDSTER 24*2.0, 27TPI WB |
| REAR TYRE | VEE SPEEDSTER 24*2.0, 27TPI WB |
| HEADSET | 1 1/8” CARTRIDGE BEARING, CONVENTIONAL |
| STEM | RITCHEY OS FORGED AL6061, 35MM REACH |
| BARS | 640MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE |
| GRIPS | ER WING 120L, 70R |
| SEAT POST | RITCHEY, 27.2MM, AL6061, 300MM |
| SADDLE | ER YOUTH SADDLE, BLACK |
| SEAT CLAMP | ER BOLT, 31.8MM |
| SPEC NOTICE | Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice |
[Table spec]
| A | Wheelbase | 950mm |
| B | Head Angle | 69° |
| C | Seat Tube Length | 335mm |
| D | Chainstay Length | 394mm |
| E | Seat Tube Angle | 73° |
| F | Standover Height | 630mm |
| G | Top Tube Length | 490mm |
| H | Head Tube Length |
92mm |
| I | Stack |
461mm |
| J | Reach |
349mm |
| K | Fork Length | 375mm |
