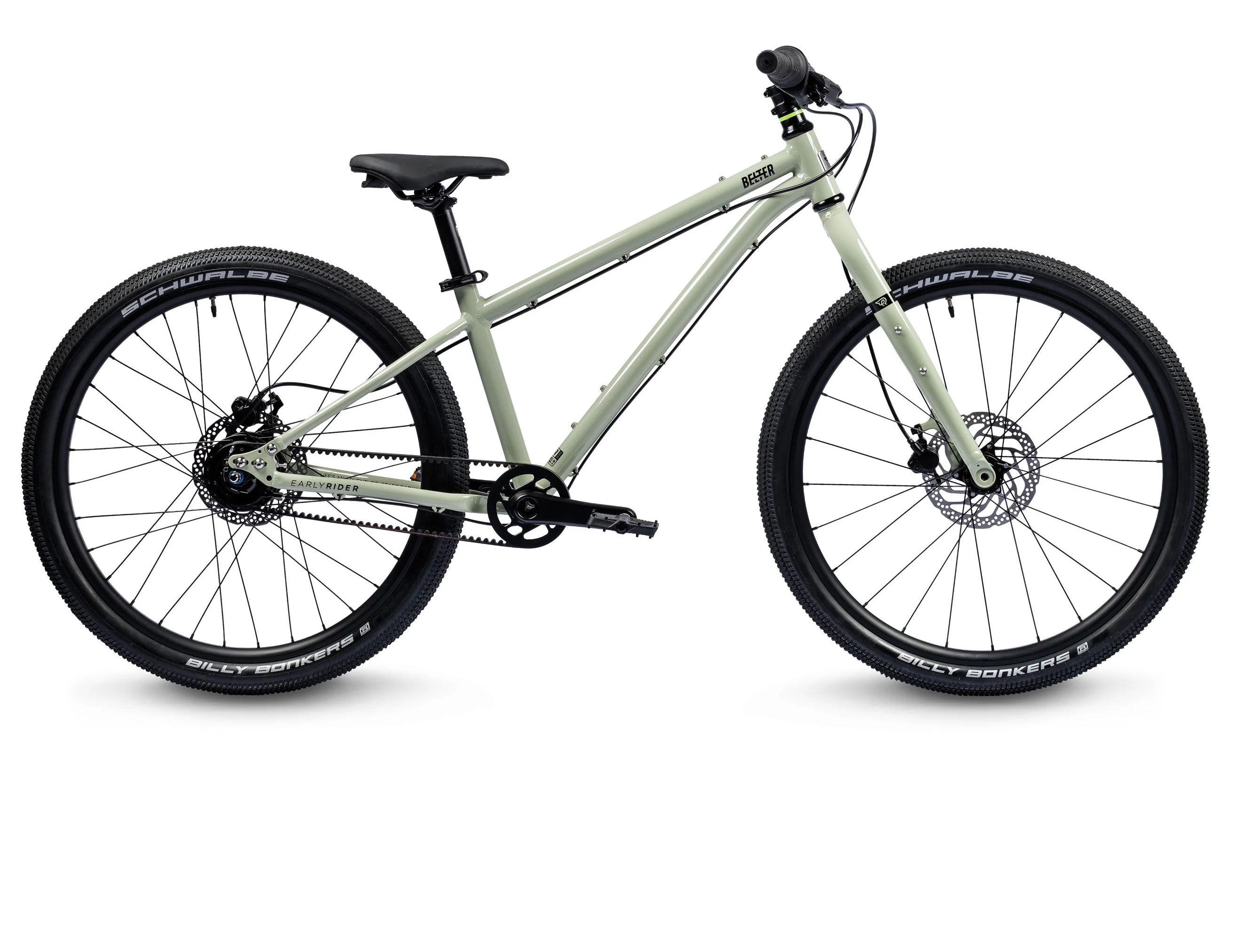

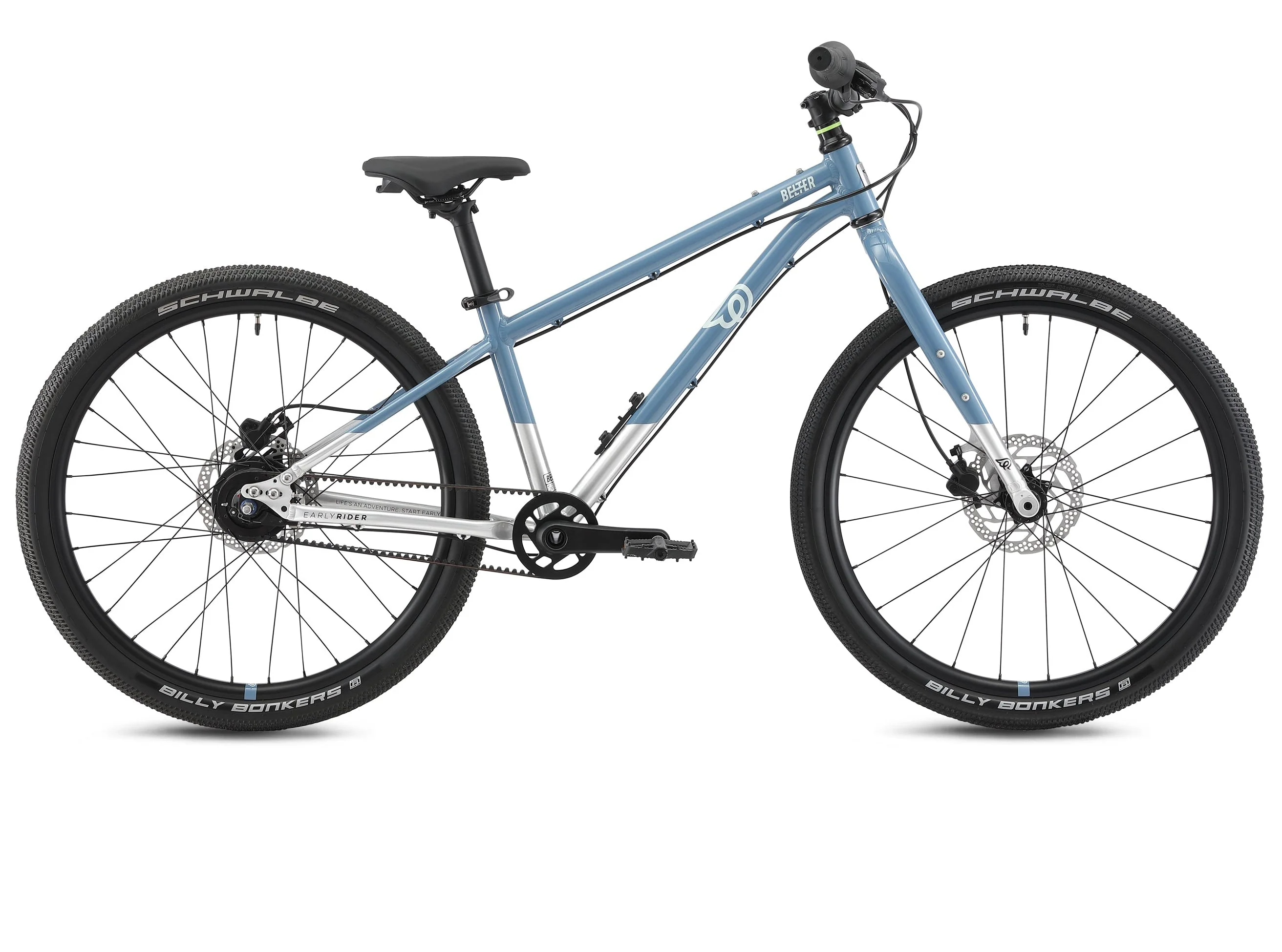

Belter 24
The (last) word on the street.
Ready for more challenging city rides, this 24" bike is built with a lightweight aluminium frame and updated geometry for superior stability and handling. Featuring a Shimano Nexus 8-speed internal hub, shifting is smooth and reliable, while the Tektro hydraulic disc brakes provide precise stopping power in any condition. The low-maintenance 12mm belt drivetrain, sealed bearing wheels, and Schwalbe Billy Bonkers 2.0" tires offer durability and comfort. With smaller diameter grips and kid-friendly gearing, this bike is perfect for young riders ready to take on the urban jungle with confidence.
ASSEMBLY INSTRUCTIONS:
Your bike will arrive carefully packaged and boxed with the front and rear wheel detached. Attach both wheels using the bolts supplied and install the gearing mechanism. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.
[Left column]
INSIDE LEG
64CM
FRAME
HAND BRUSHED AL6061, DISC FRAME, FORGED SLIDING DROP OUTS
FORK
HAND BRUSHED AL6061, DISC, FORGED BOLT THRU DROP OUTS
STEERER TUBE
AL6061
CRANKS
CRUX 130MM FORGED CRANKSET
PEDALS
ER PLATFORM PEDAL, ALLOY, CARTRDIGE BEARING
BOTTOM BRACKET
CRUX EXTERNAL CUP 24MM
RIMS
FRONT 24H, REAR 32H DOUBLE WALLED AL6061
REAR HUB
SHIMANO NEXUS C6001-8D (8SPD)
FRONT HUB
AL6061 CNC'D BOLT THRU, 12 x 100MM 24H
BELT
EARLY RIDER 1080MM x 10.0P x 12MM WIDTH
FRONT SPROCKET
AL6061 34T, DUAL GUARD
REAR SPROCKET
AL6061 25T DUAL GUARD
*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*
CLICK HERE TO VIEW THE USER MANUAL
[Right column]
WEIGHT
10.2KGS W/O PEDALS
SHIFTER
SHIMANO NEXUS TWIST, 8SPD
BRAKES
TEKTRO HYDRAULIC JR, 160MM ROTORS
LEVERS
TEKTRO SHORT REACH
FRONT TYRE
SCHWALBE BILLY BONKERS 24*2.0, 60TPI WB
REAR TYRE
SCHWALBE BILLY BONKERS 24*2.0, 60TPI WB
HEADSET
1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM
FORGED AL6061, 35MM REACH
BARS
640MM DOUBLE BUTTED AL6061, 30MM RISE
GRIPS
ER WING 120L, 70R
SEAT POST
27.2MM, AL6061, 300MM
SADDLE
ER WING 2
SEAT CLAMP
ER BOLT, 31.8MM
[Table]
| STANDOVER HEIGHT | 58.5CM |
| FRAME | HAND BRUSHED AL6061, DISC FRAME, FORGED SLIDING DROP OUTS |
| FORK | HAND BRUSHED AL6061, DISC, FORGED BOLT THRU DROP OUTS |
| STEERER | AL6061 |
| CRANKS | SCRUX 130MM FORGED CRANKSET |
| PEDALS | ER PLATFORM PEDAL, ALLOY, CARTRDIGE BEARING |
| BOTTOM BRACKET | CRUX EXTERNAL CUP 24MM |
| RIMS | FRONT 22H, REAR 32H DOUBLE WALLED AL6061 |
| REAR HUB | SHIMANO NEXUS C6001-8D (8SPD) |
| FRONT HUB | AL6061 12 x 100MM BOLT THRU 24H |
| AXLES | AL6061 |
| BELT | EARLY RIDER 1080MM x 10.0P x 12MM WIDTH |
| FRONT SPROCKET | AL6061 34T DUAL GUARD |
| WEIGHT | 10.2KGS W/O PEDALS |
| REAR SPROCKET | AL6061 25T DUAL GUARD |
| BRAKES | TEKTRO HYDRAULIC JR, 160MM ROTORS |
| LEVERS | TEKTRO SHORT REACH |
| FRONT TYRE | SCHWALBE BILLY BONKERS 24 x 20", 60TPI WB |
| REAR TYRE | SCHWALBE BILLY BONKERS 24 x 20", 60TPI WB |
| HEADSET | 1 1/8” CARTRIDGE BEARING, CONVENTIONAL |
| STEM | FORGED AL6061, 35MM REACH |
| BARS | 640MM DOUBLE BUTTED AL6061, 30MM RISE |
| GRIPS | ER WING 120L, 70R |
| SEAT POST | 27.2MM, AL6061, 300MM |
| SADDLE | ER WING 2 |
| SEAT CLAMP | ER BOLT, 31.8MM |
| SPEC NOTICE | Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice |
[Table spec]
| A | Wheelbase | 992.2mm |
| B | Head Angle | 67° |
| C | Seat Tube Length | 320mm |
| D | Chainstay Length | 392mm |
| E | Seat Tube Angle | 73° |
| F | Standover Height | 585mm |
| G | Top Tube Length | 513.5mm |
| H | Head Tube Length |
92mm |
| I | Stack |
497.3mm |
| J | Reach |
361.5mm |
| K | Fork Length | 410mm |
Original: $1,159.85
-70%$1,159.85
$347.95
