Charger 16

Go faster, handle harder, enjoy more.

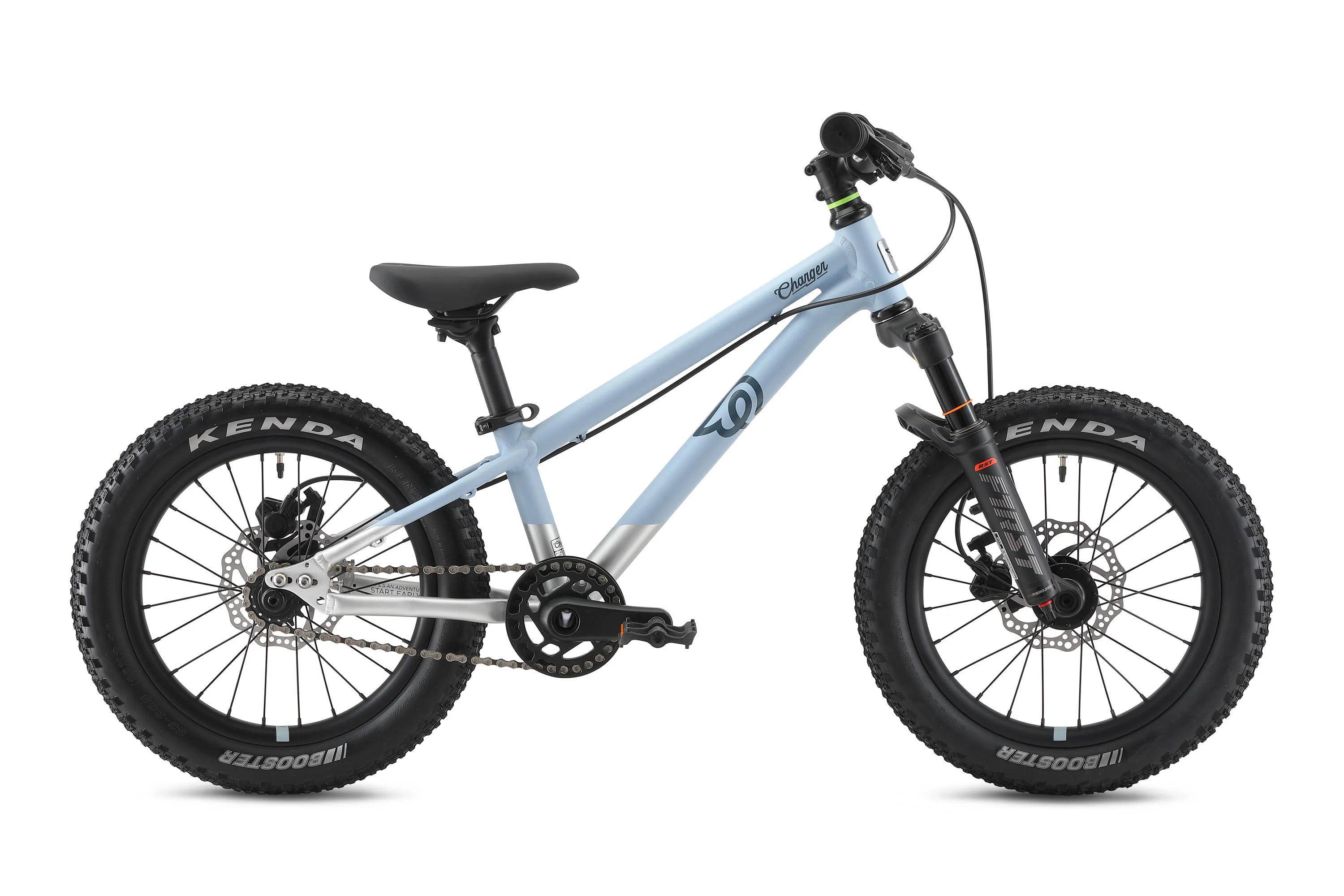

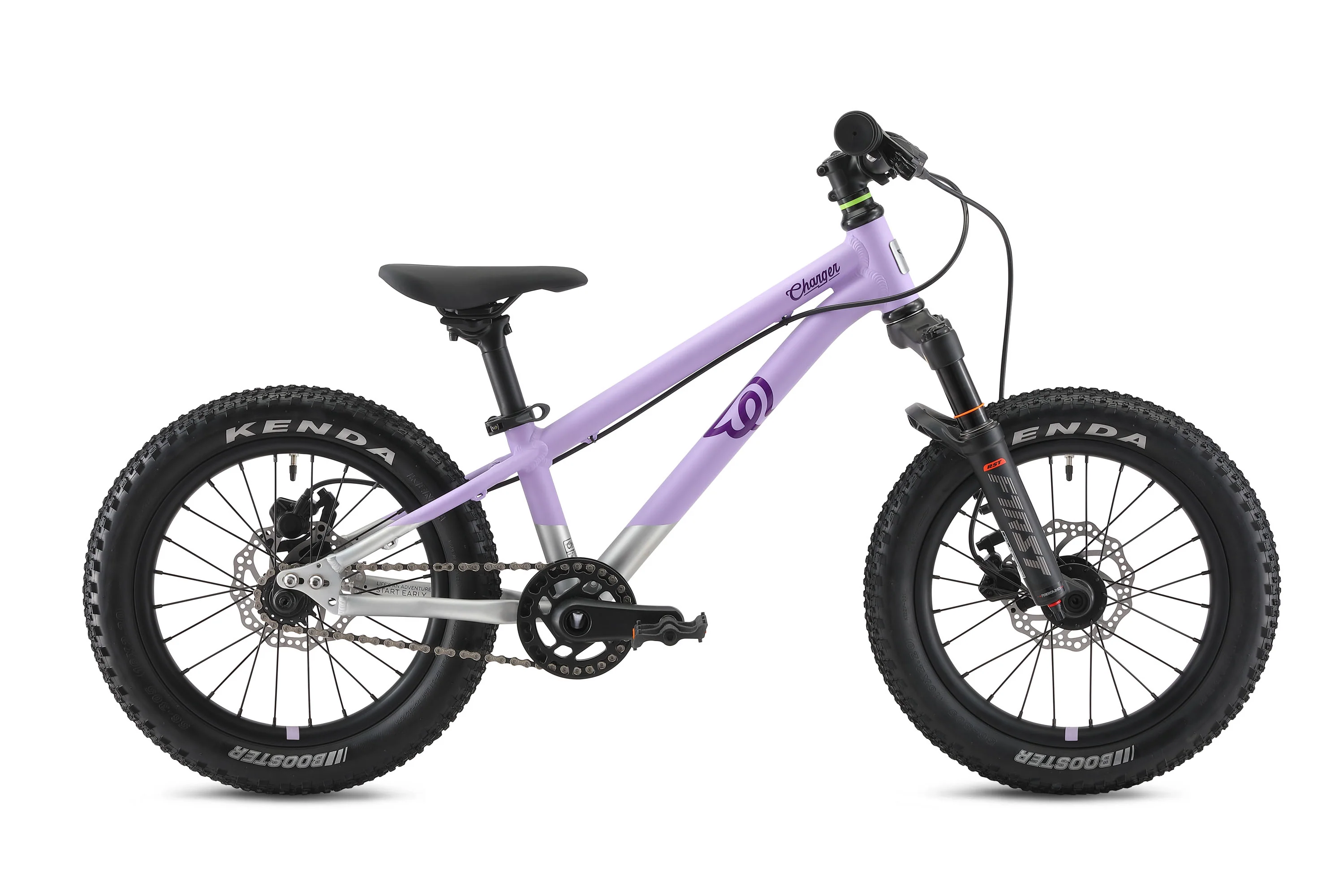

The Charger 16 is a premium 16" hardtail bike designed for young riders ready to take on real trails. Featuring RST F1RST 60mm air suspension forks and a lightweight, trail-optimized frame geometry, the Charger 16 delivers superior control, comfort, and handling. Sealed bearing wheels with bolt-thru axles provide strength and smooth rolling performance, while wide Kenda Booster 2.2" tires offer excellent grip on varied terrain. Reduced-diameter grips ensure a secure, comfortable hold for smaller hands. With gear compatibility for future upgrades and a refined chain-driven drivetrain using a new 90mm chainset, the Charger 16 offers improved pedal efficiency for growing riders who are ready to go further.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with both wheels attached. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Then simply add the pedals. Please retain your manual.



[Left column]

INSIDE LEG

44.5CM

FRAME

HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS

FORK

RST F1RST 60MM TRAVEL AIR SUSPENSION FORKS

STEERER TUBE

AL6061

CRANKS

CRUX CNC'D AL6061, 90MM

PEDALS

RESIN PLATFORM, SEALED CARTRIDGE BEARING

BOTTOM BRACKET

CRUX EXTERNAL CUP, 24MM SEALED CARTRIDGE BEARING

RIMS

16 x 24H, DOUBLE WALLED AL6061

REAR HUB

FOUR-BEARING CASSETTE FREE HUB, CNC'D AL6061

FRONT HUB

CARTRIDGE BEARING, CNC'D AL6061

AXLES

AL6061

CHAIN

KMC X9

FRONT SPROCKET

CNC'D AL6061, 26T

 *Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*

CLICK HERE TO VIEW THE USER MANUAL

[Right column]



WEIGHT

7KGS WITHOUT PEDALS

REAR SPROCKET

CNC'D AL6061, 15T

BRAKES

CRUX HYDRAULIC DISC BRAKE WITH 140MM ROTORS

LEVERS

CRUX HYDRAULIC SHORT REACH

FRONT TYRE

KENDA BOOSTER 16x2.2", 30TPI WB

REAR TYRE

KENDA BOOSTER 16x2.2", 30TPI WB

HEADSET

1 1/8” CARTRIDGE BEARING, CONVENTIONAL

STEM

FORGED AL6061, 35MM REACH, 6-BOLT

BARS

500MM DOUBLE BUTTED AL6061, 22MM RISE, 19MM GRIP AREA

GRIPS

ER 19MM SOFT TOUCH MUSHROOM 100MM

SEAT POST

AL6061, 25.4MM x 195MM

SADDLE

BLACK WING COMBO

SEAT CLAMP

ER QR, 28.6MM



[Table]

STANDOVER HEIGHT	41CM
FRAME	HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS
FORK	RST F1RST 60MM TRAVEL AIR SUSPENSION FORKS
STEERER	TUBE AL6061
CRANKS	CRUX CNC'D AL6061, 90MM
PEDALS	RESIN PLATFORM, STUDDED, CARTRIDGE BEARING
BOTTOM BRACKET	CRUX EXTERNAL CUP, SEALED CARTRIDGE BEARING
RIMS	16 x 24H, DOUBLE WALLED AL6061
REAR HUB	FOUR-BEARING CASSETTE FREE HUB, CNC'D AL6061
FRONT HUB	CNC'D AL6061, CARTRIDGE BEARING
AXLES	AL6061
CHAIN	KMC X9
FRONT SPROCKET	CNC'D AL6061, 26T
WEIGHT	7KGS WITHOUT PEDALS
REAR SPROCKET	CNC'D AL7075, 15T
BRAKES	CRUX HYDRAULIC DISC BRAKE WITH 140MM ROTORS
LEVERS	CRUX HYDRAULIC SHORT REACH
FRONT TYRE	KENDA BOOSTER 16x2.2", 30TPI WB
REAR TYRE	KENDA BOOSTER 16x2.2", 30TPI WB
HEADSET	1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM	FORGED AL6061, 35MM REACH
BARS	500MM DOUBLE BUTTED AL6061, 22MM RISE, 19MM GRIP AREA
GRIPS	ER 19MM SOFT TOUCH MUSHROOM 100MM
SEAT POST	AL6061, 25.4MM x 195MM
SADDLE	BLACK WING COMBO
SEAT CLAMP	ER QR, 28.6MM

SPEC NOTICE

Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice

[Table spec]

A	Wheelbase	750mm
B	Head Angle	66.5°
C	Seat Tube Length	210mm
D	Chainstay Length	262mm
E	Seat Tube Angle	72°
F	Standover Height	430mm
G	Top Tube Length	413.8mm
H	Head Tube Length	90mm
I	Stack	396.6mm
J	Reach	285mm
K	Fork Length	325mm
