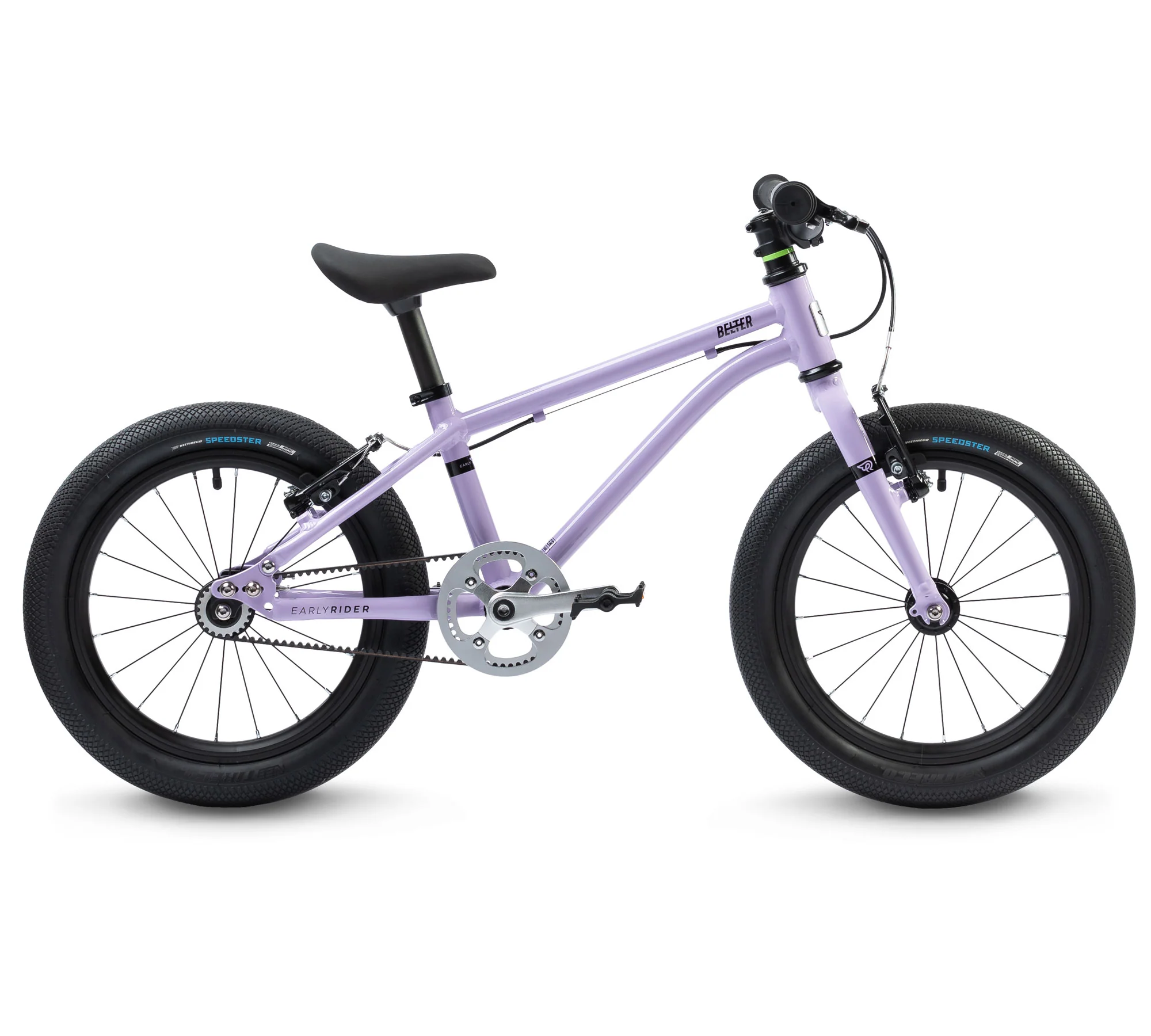

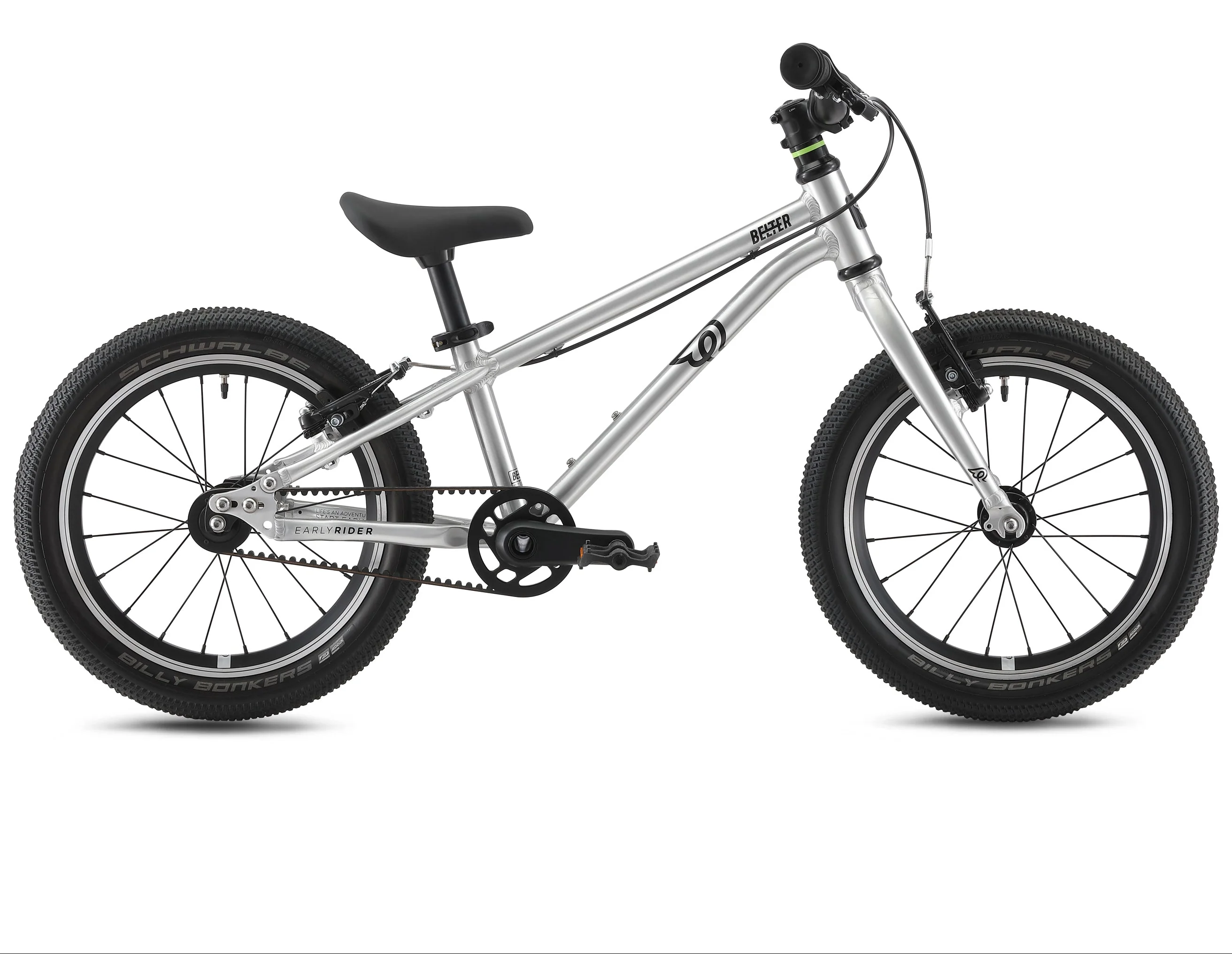

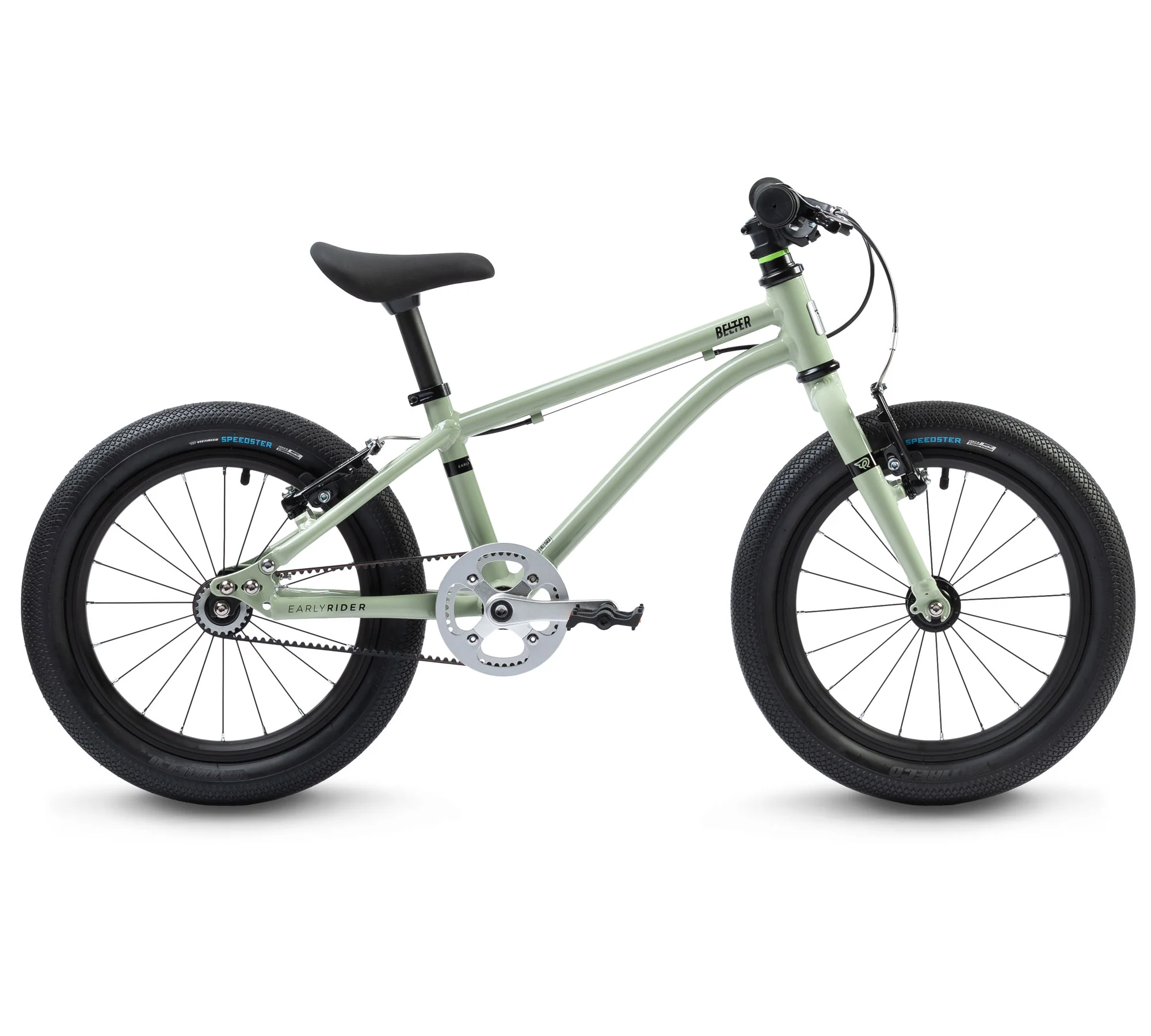

Belter 16 (MY24/25)
The world's best selling belt drive bike...
... just got better. Refined with the help of over 100,000 young riders, the Belter 16 is built with the very best components and performs in a way that will make you rethink what your child is capable of.
A ridiculously good 4 bearing cassette-hub puts pay to energy sapping distortion when those little legs power down to crush the hills. Our market leading, micro adjust drive system ensures perfect alignment for the efficiency kids need to ride further and to explore more. A sliding drop out that allows effortless wheel removal and refit without the hassle of realigning. The same bearings found on our £2,000 full suspension bikes, because the smallest kids need the biggest help. A super lightweight aluminium frame, hand brushed so our craftsmanship and quality materials are there for all to see. Ritchey Logic finishing kit for confidence inspiring controls that will help your child progress further than you imagined. And, despite still being a paltry 5.7kgs, 2" Vee Speedsters to add stability and better roll over because we all know what it feels like to hit bumps on skinny tyres.
WORTH THE WEIGHT
5.9kgs as spec'd. You can opt for standard 1.5" tyres to reduce the weight to 5.5kgs at no extra cost but we feel the Vee Speedsters provide the stability, grip and comfort that will help your child enjoy their cycling and progress at a faster rate.
ASSEMBLY INSTRUCTIONS:
Your bike will arrive carefully packaged and boxed with both wheels attached. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Then simply add the pedals. Please retain your manual.
[Left column]
INSIDE LEG
45CM
FRAME
HAND BRUSHED AL6061, FORGED DROP OUTS
FORK
HAND BRUSHED AL6061, FORGED DROP OUTS
STEERER TUBE
AL6061
CRANKS
CNC'D AL6061, 105MM
PEDALS
RESIN PLATFORM, STUDDED, CARTRIDGE BEARING (upgrade since image above)
BOTTOM BRACKET
ER EXTERNAL CUP, SEALED CARTRIDGE BEARING
RIMS
16 x 20H, DOUBLE WALLED AL6061
REAR HUB
FOUR-BEARING CASSETTE FREE HUB, CNC'D AL6061
FRONT HUB
CARTRIDGE BEARING, CNC'D AL6061
AXLES
AL6061
BELT
GATES POWERGRIP 840-8M
FRONT SPROCKET
CNC'D AL6061, 46T, AL6061 AXLE
*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*
CLICK HERE TO VIEW THE USER MANUAL
[Right column]
WEIGHT
5.9KGS WITHOUT PEDALS
REAR SPROCKET
CNC"D AL6061, 22T
BRAKES
TEKTRO BX1V
LEVERS
TEKTRO SHORT REACH JL352
FRONT TYRE
VEE SPEEDSTER 16x2.0 27TPI WB
REAR TYRE
VEE SPEEDSTER 16x2.0 27TPI WB
HEADSET
1 1/8” CONVENTIONAL, EXTERNAL CUP
STEM
RITCHEY OS FORGED AL6061, 35MM REACH
BARS
480MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE
GRIPS
ER SOFT TOUCH MUSHROOM
SEAT POST
AL6061, 25.4MM, 195MM
SADDLE
BROWN RIVETTED FAUX LEATHER
SEAT CLAMP
ER BOLT, 28.6MM
[Table]
| STANDOVER HEIGHT | 45CM |
| FRAME | HAND BRUSHED AL6061, FORGED DROP OUTS |
| FORK | HAND BRUSHED AL6061, FORGED DROP OUTS |
| STEERER | TUBE AL6061 |
| CRANKS | CNC'D AL6061, 105MM |
| PEDALS | RESIN PLATFORM, STUDDED, CARTRIDGE BEARING |
| BOTTOM BRACKET | EXTERNAL CUP, SEALED CARTRIDGE BEARING |
| RIMS | 16 x 20H, DOUBLE WALLED AL6061 |
| REAR HUB | FOUR-BEARING CASSETTE FREE HUB, CNC'D AL6061 |
| FRONT HUB | CNC'D AL6061, CARTRIDGE BEARING |
| AXLES | AL6061 |
| BELT | GATES POWERGRIP 840-8M |
| FRONT SPROCKET | CNC'D AL6061, 46T, AL6061 AXLE |
| WEIGHT | 5.6KGS WITHOUT PEDALS |
| REAR SPROCKET | CNC"D AL7075, 22T |
| BRAKES | TEKTRO 837AL, 102MM ARMS |
| LEVERS | TEKTRO SHORT REACH JL352 |
| FRONT TYRE | VEE SPEEDSTER 16x2.0 27TPI WB |
| REAR TYRE | VEE SPEEDSTER 16x2.0 27TPI WB |
| HEADSET | 1 1/8” CONVENTIONAL, EXTERNAL CUP |
| STEM | RITCHEY OS FORGED AL6061, 35MM REACH |
| BARS | 440MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE |
| GRIPS | ER SOFT TOUCH MUSHROOM 100MM |
| SEAT POST | AL6061, 25.4MM x 195MM |
| SADDLE | BROWN RIVETTED FAUX LEATHER |
| SEAT CLAMP | ER BOLT, 28.6MM |
| SPEC NOTICE | Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice |
[Table spec]
| A | Wheelbase | 710mm |
| B | Head Angle | 69.5° |
| C | Seat Tube Length | 229mm |
| D | Chainstay Length | 282mm |
| E | Seat Tube Angle | 71° |
| F | Standover Height | 435mm |
| G | Top Tube Length | 392mm |
| H | Head Tube Length | 90mm |
| I | Stack |
326mm |
| J | Reach |
280mm |
| K | Fork Length | 255mm |
