Charger 20

Eat, Seek, Shred Repeat.

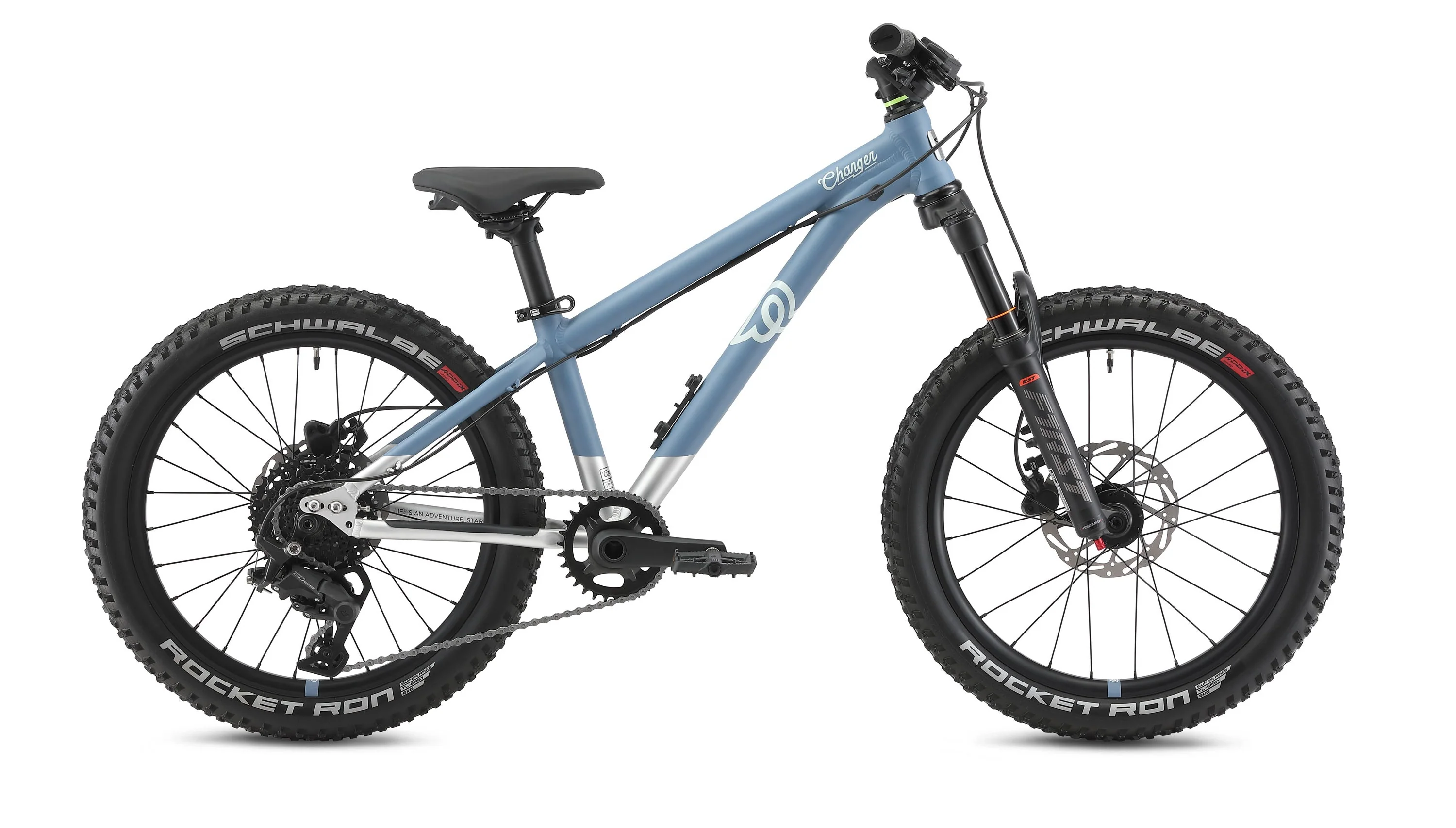

The Charger 20 is a premium 20" hardtail bike built for young riders aged 6–8 who are ready to push their trail riding further. Equipped with 100mm RST F1RST air suspension forks and a lightweight, trail-optimized frame that is dropper post ready. The Charger 20 offers outstanding control, comfort, and confidence on rough terrain. Sealed bearing wheels with bolt-thru axles deliver strength and smooth, consistent rolling, while wide Schwalbe Rocket Ron 2.25" tires ensure superior grip across mixed surfaces.  The refined chain-driven drivetrain features a new 110mm chainset and a Shimano CUES 9 Speed drivetrain for improved pedal efficiency. Making the Charger 20 the perfect choice for ambitious young trail riders.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with the rear wheel attached. The front wheel will need attaching using the skewer supplied. The handlebar will be zip tied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.

[Left column]

INSIDE LEG

54CM

FRAME

HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS

FORK

RST F1RST 100MM TRAVEL AIR SUSPENSION FORK

STEERER TUBE

AL6061

CRANKS

CRUX 110MM DIRECT MOUNT, NARROW Q FACTOR

PEDALS

ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING

BOTTOM BRACKET

CRUX 24MM EXTERNAL CUP

RIMS

20 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE

REAR HUB

FOUR-BEARING CASSETTE FREEHUB, CNC'D AL6061

FRONT HUB

CNC’D 6 BOLT DISC, AL6061, QR SKEWER

CHAIN

KMC eGLIDE 9 SPEED

CHAINRING

DIRECT MOUNT, NARROW WIDE 30T, ALLOY

REAR CASSETTE

SHIMANO 9-SPEED 11-36t LINKGLIDE

SHIFTER

SHIMANO CUES 9-SPEED TRIGGER



*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*

CLICK HERE TO VIEW THE USER MANUAL

[Right column]

WEIGHT

10.2KGS W/O PEDALS

DERAILLEUR

SHIMANO CUES 9-SPEED MECH

BRAKES

TEKTRO HYDRAULIC DISC, 160 ROTORS

LEVERS

TEKTRO SHORT REACH

FRONT TYRE

SCHWALBE ROCKET RON 20x2.25", 67TPI FOLDING

REAR TYRE

SCHWALBE ROCKET RON 20x2.25", 67TPI FOLDING

HEADSET

1 1/8” CARTRIDGE BEARING, CONVENTIONAL

STEM

FORGED AL6061, 35MM REACH, 6-BOLT

BARS

600MM DOUBLE BUTTED AL6061, 25MM RISE

GRIPS

ER LOCK ON KRATON 92MM

SEAT POST

30.9 x 250MM AL6061

SADDLE

ER WING 2, RAILED

SEAT CLAMP

QR, 34.9MM



[Table]

STANDOVER HEIGHT	54CM
FRAME	HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS
FORK	RST F1RST 100MM TRAVEL AIR SUSPENSION FORK
STEERER	TUBE AL6061
CRANKS	CRUX 110MM DIRECT MOUNT, NARROW Q FACTOR
PEDALS	ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING
BOTTOM BRACKET	CRUX 24MM EXTERNAL CUP
RIMS	20 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE
REAR HUB	FOUR-BEARING CASSETTE FREEHUB, CNC'D AL6061
FRONT HUB	CNC’D 6 BOLT DISC, AL6061, QR SKEWER
AXLES	REAR: 12MM BOLT THRU, FRONT: 15MM BOLT THRU
CHAIN	KMC eGLIDE
CHAINRING	DIRECT MOUNT, NARROW WIDE 30T, ALLOY
WEIGHT	10.2KGS W/O PEDALS
REAR CASSETTE	SHIMANO 9-SPEED 11-36T LINKGLIDE
BRAKES	TEKTRO HYDRAULIC DISC, 160 ROTORS
LEVERS	TEKTRO SHORT REACH
FRONT TYRE	SCHWALBE ROCKET RON 20x2.25", 67TPI FOLDING
REAR TYRE	SCHWALBE ROCKET RON 20x2.25", 67TPI FOLDING
HEADSET	1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM	FORGED AL6061, 35MM REACH
BARS	560MM DOUBLE BUTTED AL6061, 25MM RISE
GRIPS	ER LOCK ON KRATON 92MM
SEAT POST	30.9MM
SADDLE	ER WING 2, RAILED
SEAT CLAMP	ER QR 34.9MM
DERAILLEUR	SHIMANO CUES 9-SPEED MECH

SPEC NOTICE

Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice

[Table spec]

A	Wheelbase	898.9mm
B	Head Angle	67°
C	Seat Tube Length	280mm
D	Chainstay Length	340mm
E	Seat Tube Angle	73°
F	Standover Height	540mm
G	Top Tube Length	473.8mm
H	Head Tube Length	90mm
I	Stack	487.6mm
J	Reach	324.7mm
K	Fork Length	410mm
